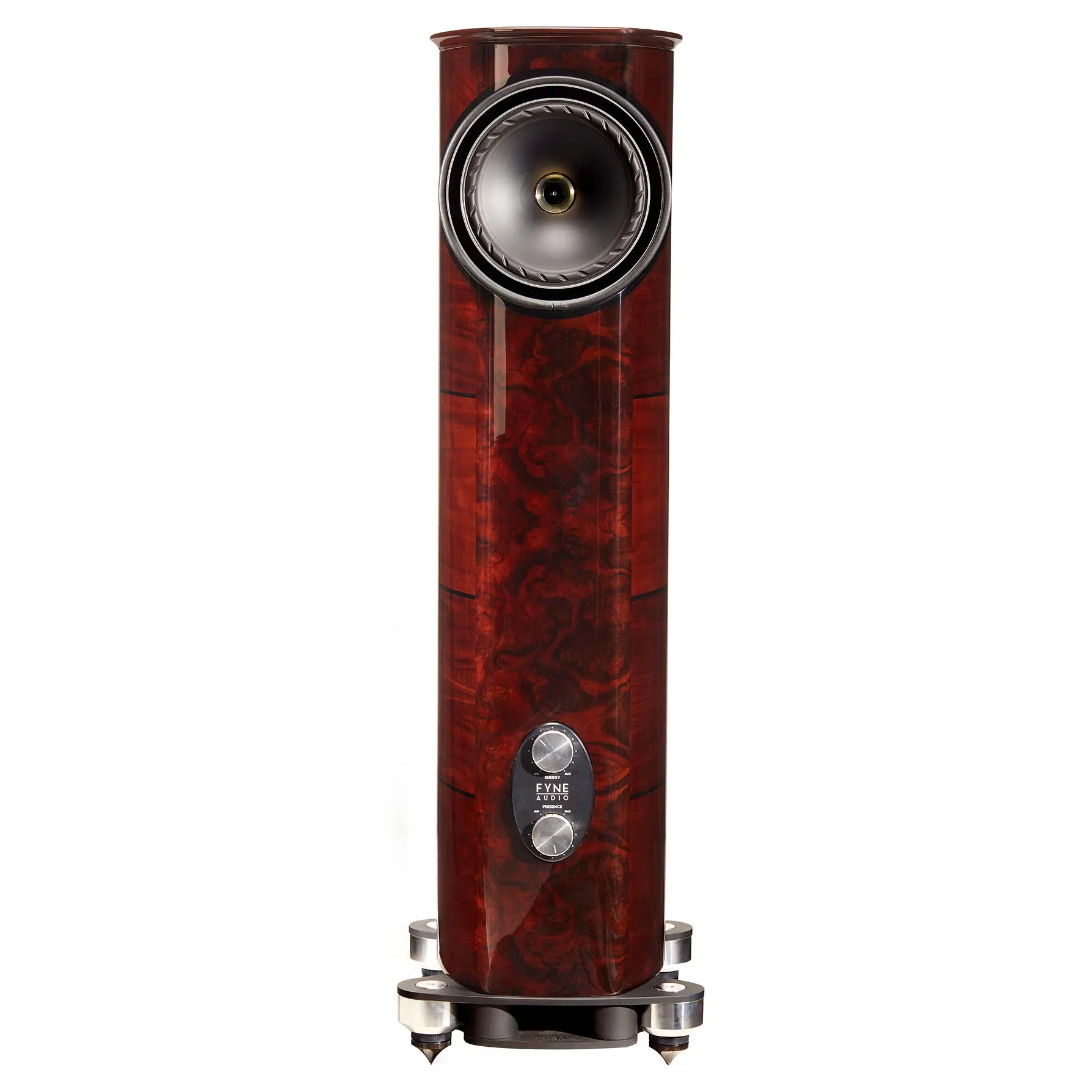

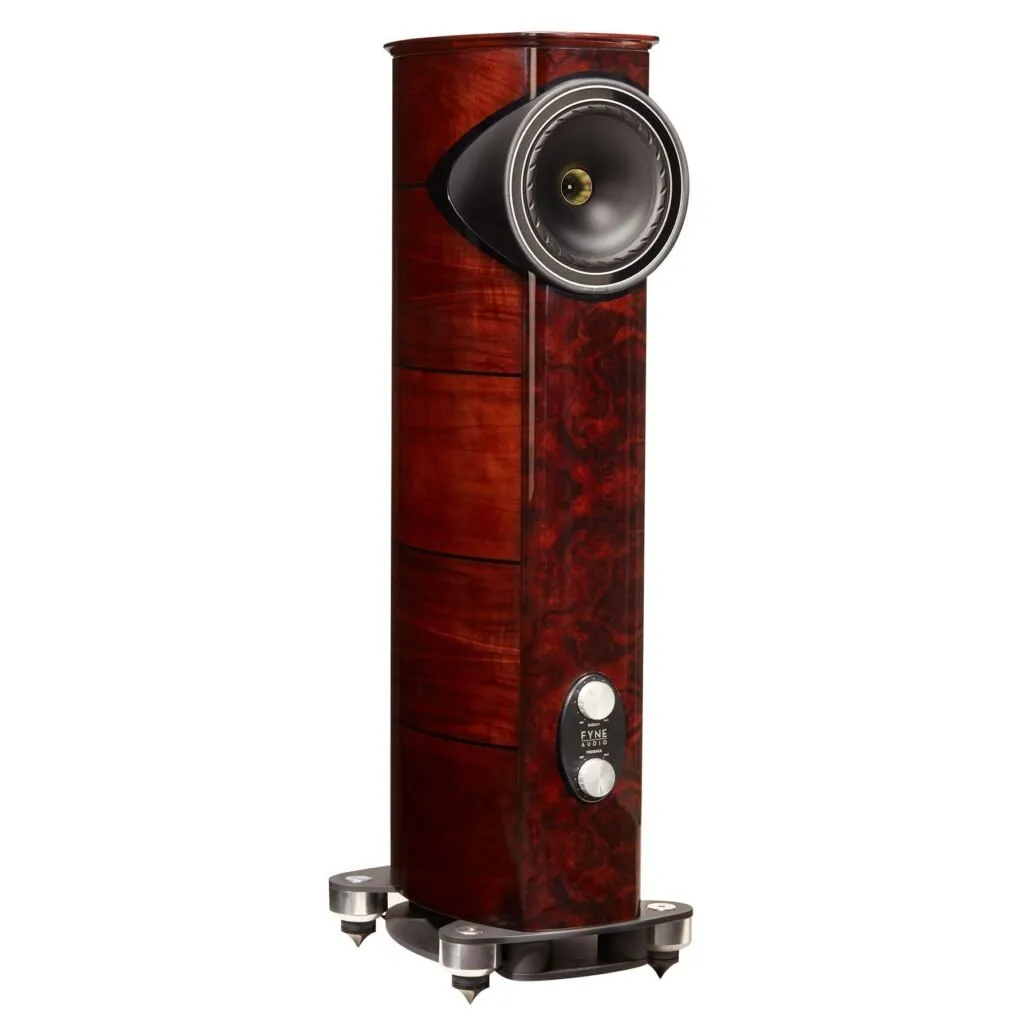

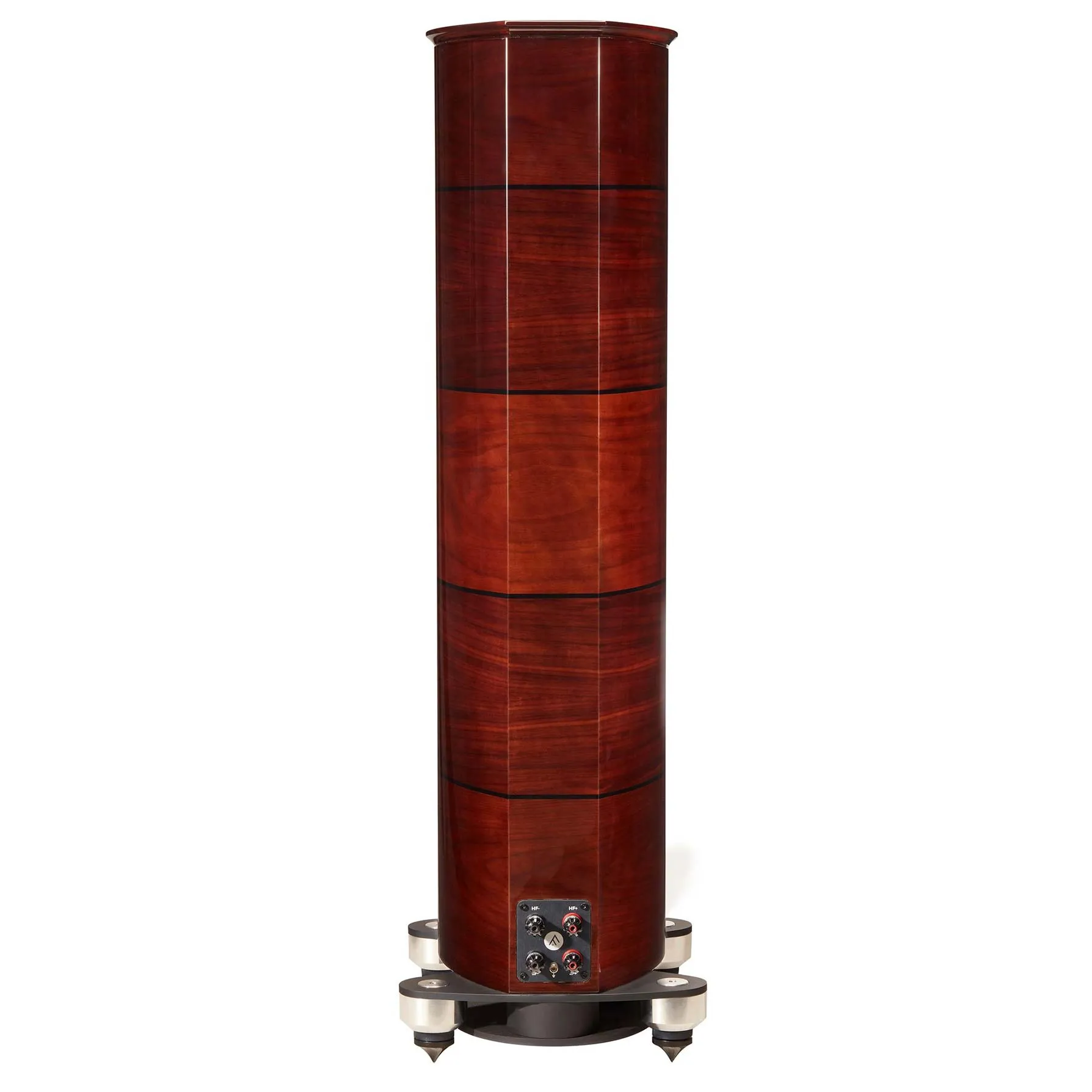

Fyne Audio F1-8S Floorstanding Speaker
Dr Paul Mills and his development team have distilled Fyne Audio’s 8” driver and a bespoke crossover design into its most luxurious cabinet yet to meet the demand for the smaller listening room. Combined with the twin cavity BassTrax ported cabinet, the F1-8S produces an enhanced bass reaching down to 30Hz.
Featuring a 25mm magnesium dome compression tweeter, the 8” IsoFlare driver offers a seamless, time-aligned HF response to over 34kHz for ultimate realism and listener engagement. The F1-8S’s high sensitivity (91dB/W) ensures exceptional dynamic range and compatibility with the widest range of amplifiers from single ended triode valve models to the highest power solid state designs. The BassTrax porting and high quality potentiometer controls for HF energy and presence ensure the F1-8S will deliver optimum performance irrespective of room size or placement.
Designed, handcrafted and hand finished at Fyne Audio’s UK manufacturing facility the sumptuous lacquered burr walnut finish of the F1-8S offers a bold statement in loudspeaker design for the audiophile with limited space.
Specifications
System Type
2 way, downwards firing port, with BassTrax Tractrix diffuser
Recommended amplifier power (Watt RMS)
20 - 200
Peak power handling (Watt)
400
Continuous power handling (Watt RMS)
100
Sensitivity (2.83 Volt @ 1m)
91dB
Nominal impedance
8 Ohm
Frequency response (-6dB typical in room)
30Hz - 34kHz
Drive unit complement
1 x 200mm IsoFlare point source driver with FyneFlute surround, multi-fibre bass / midrange cone, with 25mm magnesium alloy dome compression tweeter, neodymium magnet system
Crossover frequency
1.8kHz
Crossover type
Bi-wired passive low loss, 2nd order low pass, 1st order high pass, Deep Cryogenically Treated
System adjustments
High frequency energy (1.8kHz - 34kHz) /- 3dB
Presence (2.5kHz - 5.0kHz) /- 3dB
Dimensions - HxWxD
1086 x 335 x 445mm (42.8 x 13.2 x 17.5”)
Weight - Each
30.0kg (66.0lbs)
Finishes
Piano Gloss Walnut
